HTTP

HTTP connection handler, provides all enabled HTTP-based outputs

Looking for HTTPS?

You'll want to look at our HTTPS output or our guides on activating HTTPS

Why is 8080 the default HTTP port for MistServer?

MistServer is made to be non-conflicting with other applications when installed, often a webserver is installed and will have already claimed port 80 which is the default port for HTTP. Claiming port 8080 allows MistServer to be ran adjacent to any webserver without the need for additional configuration. In that case we also recommend using a reverse proxy to enable HTTPS.

You can set up multiple HTTP protocols for multiple ports

There's no real limit in how many HTTP protocols you can set up. If you want to use additional ports you can set up multiple MistOutHTTP for specific ports. All of these would deliver valid HTTP data and can be used. For example adding port 80 for default HTTP on top of the 8080 default is perfectly fine.

Public address overwrites

There are cases where MistServer does not know where its HTTP endpoints might be available, this could be because you're using a reverse proxy without the X-MST-Path header to guide it. Whatever the reason might be you can point MistServer in the right direction with the Public Address fields. Any of the addresses (make sure to add the prefix such as http:// or https:// ) will overwride the defaults and will be used instead.

This also means that any currently working addresses will need to be added to the list of Public addresses. A good example would be adding a reverse proxy address such as https://myserver/mistserver/, you will also need to add http://myserver:8080 in order to keep the default port 8080 available and/or server HTTP requests.

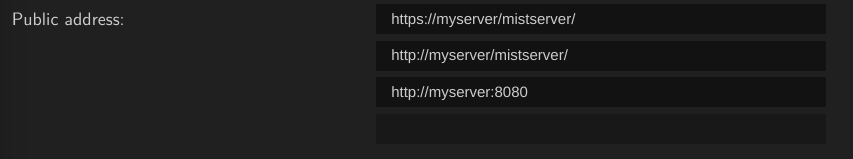

The setup above allows for https://myserver/mistserver and http://myserver/mistserver through a reverse proxy and http://myserver:8080 directly. All of them would work assuming the reverse proxy is enabled for HTTP and HTTPS.

Knowing where to point the public address

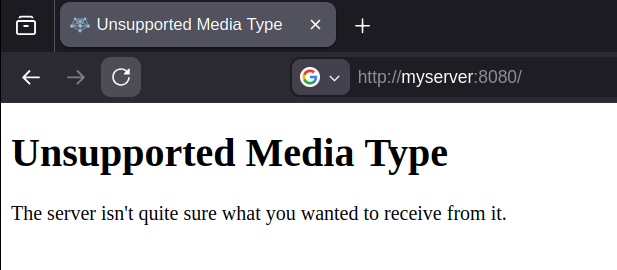

The Public Address needs to point to the HTTP(S) endpoint that MistServer will be serving. There's a good trick in knowing where to point the public address if you're unsure. When you're using a browser and trying to contact the HTTP(S) port directly you will get an Unsupported media type error page as shown below:

This is the address you need to fill in, copy it from your browser and put it in the public address. MistServer takes care of all the other stream specific syntaxes depending on the outputs.

Provides dependency HTTP for MistServer

Provides	Description
HTTP	HTTP connection handler, provides all enabled HTTP-based outputs

HTTP Optional configurations

Option	Description	Type	Default	API	Commandline
Certbot validation token	Automatically set by the MistUtilCertbot authentication hook for certbot. Not intended to be set manually.	String		certbot	--certbot
debug	The debug level at which messages need to be printed.	debug	Inherited from parent process	debug	--debug
Default track sorting	What tracks are selected first when no specific track selector is used for playback.	= Default (last added for live, first added for VoD) bps_lth = Bit rate, low to high bps_htl = Bit rate, high to low id_lth = Track ID, low to high id_htl = Track ID, high to low res_lth = Resolution, low to high res_htl = Resolution, high to low		default_track_sorting	--default_track_sorting
Interface	Address of the interface to listen on	String	0.0.0.0	interface	--interface
Stream unavailable text	Text or HTML to display when streams are unavailable.	String		nostreamtext	--nostreamtext
TCP port	TCP port to listen on	Number (unsigned integer)	8080	port	--port
Public address	Full public address this output is available as, if being proxied	inputlist		pubaddr	--public-address
Username	Username to drop privileges to - default if unprovided means do not drop privileges	String	root	username	--username
Active players	Which players are attempted and in what order.	ord_multi_sel		wrappers	--wrappers
