Encoder - Livepeer network

This encoder leverages the Livepeer network in order to do encoding. Using their decentralized network comes with a cheap price so it can be very interesting if your own hardware isn't capable of encoding all your streams.

codec support

Type	Codecs
Video	H264

Configuration

The Livepeer network requires an API key to access and an encoding profile must be set up.

Interface

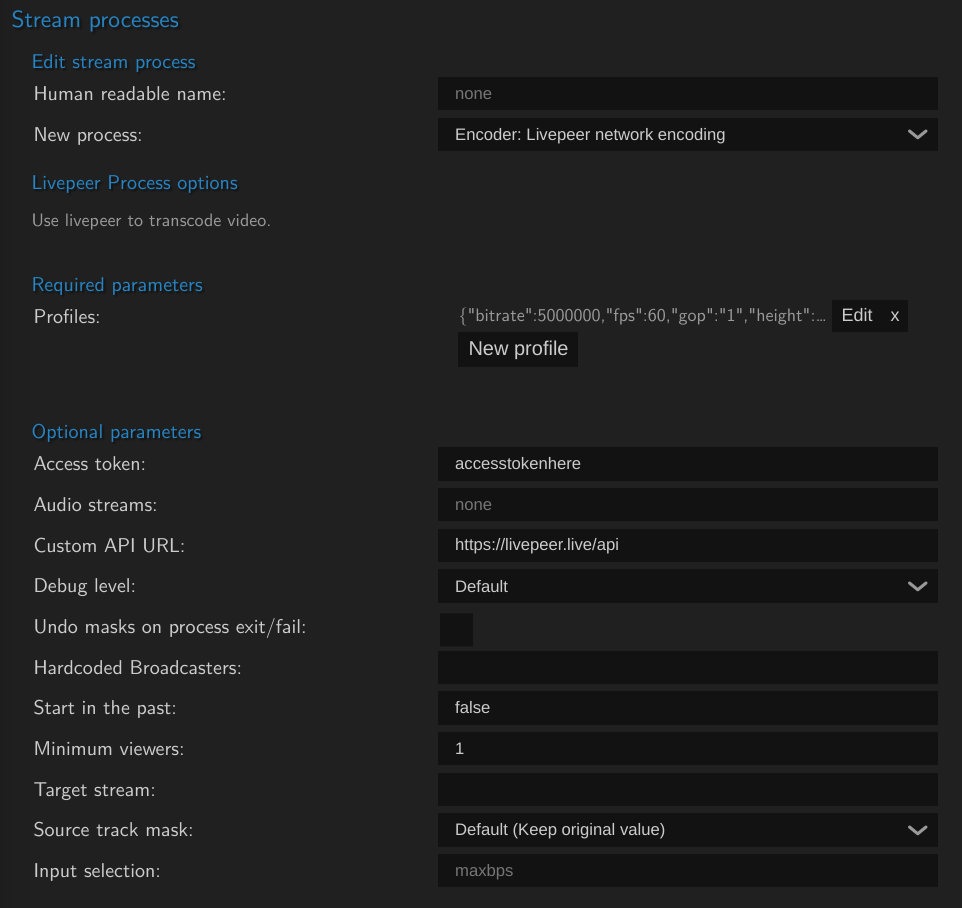

The Livepeer network encoder is much easier to set up through the interface for the first time. Another thing to keep in mind is that you can set multiple profiles to receive a full encoding tree.

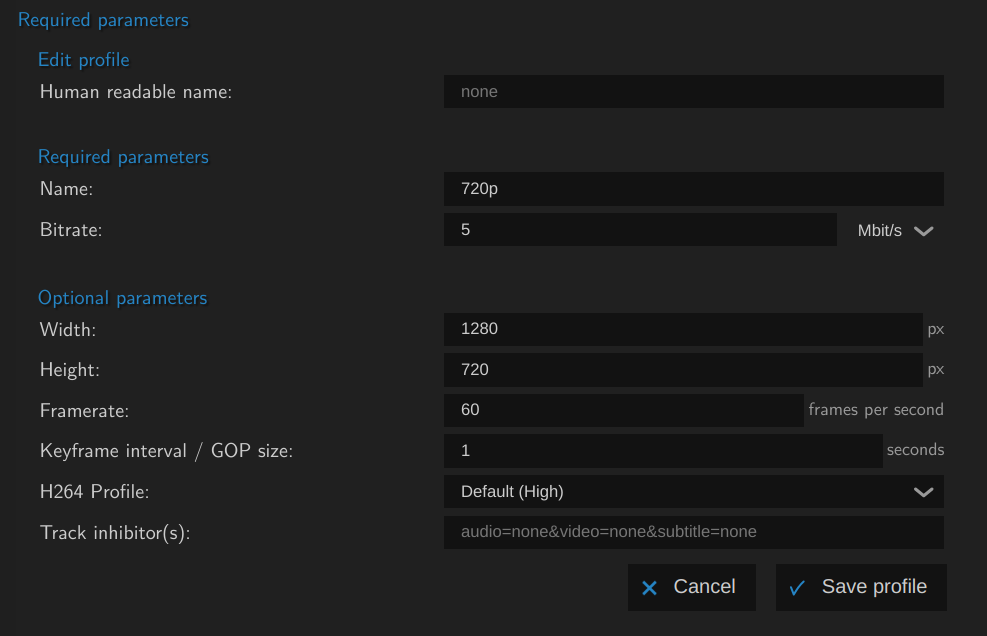

Each profile does need a name, resolution and bitrate in order to work. Other settings are optional.

Once everything is set up and the accesstoken is also given you're done setting things up.

Configuration file / API

The following would be an example of how to add MKV In/Out to your stream.

{
    "process": "Livepeer",
    "target_profiles": [
        {
            "name": "720p",
            "bitrate": 5000000,
            "width": 1280,
            "height": 720,
            "fps": 60,
            "gop": "1"
        }
    ],
    "access_token": "accesstokenhere",
    "custom_url": "https://livepeer.live/api",
    "exit_unmask": false,
    "leastlive": "false",
    "min_viewers": 1,
    "inconsequential": false,
    "restart_type": "fixed",
    "tags_inhibit": []
}

Command line

This would be adding a command to the stream example.

MistProcLivepeer '{"access_token":"accesstokenhere","source":"example","custom_url":"https://livepeer.live/api","exit_unmask":0,"inconsequential":0,"leastlive":"false","min_viewers":1,"process":"Livepeer","restart_type":"fixed","source":"test","tags_inhibit":null,"target_profiles":[{"bitrate":5000000,"fps":60,"gop":"1","height":720,"name":"720p","width":1280}]}'

Required options

Key	Name	Type	Help / Description	Select Options
process	process selector	select	Selects the specific process	Livepeer
access_token	Access token	string	Your Livepeer access token
target_profiles	Profiles	sublist	Tracks to transcode the source into

Required Profile options

Key	Name	Type	Unit	Help / Description
name	Name	str	—	Must be unique within this transcode
bitrate	Bitrate	int	bit/s, kbit/s, Mbit/s	Target bit rate of the output

Optional profile options

Key	Name	Type	Default	Unit	Help / Description	Options (if applicable)
width	Width	int	match source	px	Output width (matches source/aspect if unset)	—
height	Height	int	match source	px	Output height (matches source/aspect if unset)	—
fps	Framerate	int	0	frames/s	0 = match input framerate	—
gop	Keyframe interval / GOP size	str	0.0	seconds	“0.0” = match input, “intra” = only keyframes	—
profile	H264 Profile	select	H264High	—	Encoding profile	High, Baseline, Main, Constrained High
track_inhibit	Track inhibitor(s)	string	audio=none&video=none&subtitle=none	—	If this selector matches, profile is skipped	—

Optional process options

Key	Name	Type	Default	Unit	Help / Description	Options (if applicable)
custom_url	Custom API URL	string	https://livepeer.live/api	—	Alternative API endpoint	—
hardcoded_broadcasters	Hardcoded broadcasters	string	—	—	Use fixed broadcasters instead of Livepeer gateway	—
leastlive	Start in the past	bool	false	—	Start as far back as possible instead of live edge	—
min_viewers	Minimum viewers	int	0	—	Transcode only active when ≥ this many viewers	—

General process options

Key	Name	Type	Default / Value	Unit	Help / Description	Options (if applicable)
debug	Debug level	debug	—	—	Debug message level for process; inherits from stream setting	—
exit_unmask	Undo masks on process exit/fail	boolean	false	—	Resets input track masks to defaults when process exits or fails	—
sink	Target stream	string	—	—	What stream the encoded track should be added to (defaults to source stream)	—
source	Source stream	string	—	—	Which stream the encoded track should pull from, defaults to the stream the process is added towards	—
source_mask	Source track mask	select	Keep original value	—	Defines which internal processes have access to source tracks	Everything, Processing tasks, Processing + pushing tasks, Processing + viewing tasks
target_mask	Output track mask	select	Keep original value	—	Defines which internal processes have access to output tracks	Everything, Viewer, Pushing, Processing, and combinations
track_select	Source selector(s)	string	audio=all&video=all	—	What tracks to select for input (defaults to all audio and video tracks)	—
start_control	Process start behaviour	group	—	—	Controls when and how process starts	See below

start control options

Subkey	Name	Type	Default	Unit	Help / Description	Options (if applicable)
inconsequential	Inconsequential process	bool	false	—	Process not required for stream to be considered active	—
restart_delay	Restart delay	uint	0	ms	Delay between restarts	—
restart_type	Restart behaviour	select	fixed	—	What to do when the process exits/fails	fixed, backoff, disabled
tags_inhibit	Tag inhibitor(s)	inputlist	""	—	List of tags preventing process start	—
track_inhibit	Track inhibitor(s)	string	audio=none&video=none&subtitle=none	—	Which tracks inhibit process start	—
