Encoder - MKV In/Out

This encoder allows you to run a custom command. Whatever ran should provide matroska format media back to MistServer. You can run both commandline applications as well as scripts. As long as MistServer receives matroska on it's standard input.

codec support

Type	Codecs
Audio	Any compatible with MistServer
Video	Any compatible with MistServer

Things to keep in mind

MistServer wants matroska data, some applications like ffmpeg post a lot of header & debug data as well. While it will do its best to filter through non-matroska data it would be wise to make adjustments to the command you're running so there's as little as possible interference.

Examples

For examples on this look at our ffmpeg matroska in/out and gstreamer matroska in/out guides.

Configuration

Interface

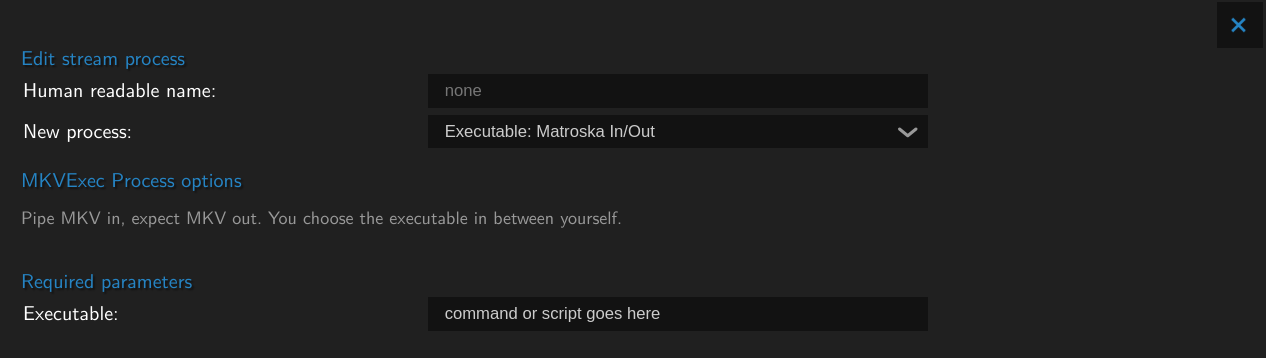

The interface offers a simple field in which you can put the command or path to script to run.

Configuration file / API

The following would be an example of how to add MKV In/Out to your stream.

      "processes": [
        {
          "exec": "command or script goes here",
          "exit_unmask": false,
          "inconsequential": false,
          "process": "MKVExec",
          "tags_inhibit": []
        }

Command line

This would be adding a command to the stream example.

MistProcMKVExec '{"exit_unmask":0,"inconsequential":false,"process":"MKVExec","exec":"command or script goes here","source":"example"}'

Required options

Key	Name	Type	Help / Description	Select Options	Default / Value
process	process selector	select	Selects the specific process	MKVExec
exec	Executable	string	What executable to run on the stream data

General process options

Key	Name	Type	Default / Value	Unit	Help / Description	Options (if applicable)
debug	Debug level	debug	—	—	Debug message level for process; inherits from stream setting	—
exit_unmask	Undo masks on process exit/fail	boolean	false	—	Resets input track masks to defaults when process exits or fails	—
sink	Target stream	string	—	—	What stream the encoded track should be added to (defaults to source stream)	—
source	Source stream	string	—	—	Which stream the encoded track should pull from, defaults to the stream the process is added towards	—
source_mask	Source track mask	select	Keep original value	—	Defines which internal processes have access to source tracks	Everything, Processing tasks, Processing + pushing tasks, Processing + viewing tasks
target_mask	Output track mask	select	Keep original value	—	Defines which internal processes have access to output tracks	Everything, Viewer, Pushing, Processing, and combinations
track_select	Source selector(s)	string	audio=all&video=all	—	What tracks to select for input (defaults to all audio and video tracks)	—
start_control	Process start behaviour	group	—	—	Controls when and how process starts	See below

start control options

Subkey	Name	Type	Default	Unit	Help / Description	Options (if applicable)
inconsequential	Inconsequential process	bool	false	—	Process not required for stream to be considered active	—
restart_delay	Restart delay	uint	0	ms	Delay between restarts	—
restart_type	Restart behaviour	select	fixed	—	What to do when the process exits/fails	fixed, backoff, disabled
tags_inhibit	Tag inhibitor(s)	inputlist	""	—	List of tags preventing process start	—
track_inhibit	Track inhibitor(s)	string	audio=none&video=none&subtitle=none	—	Which tracks inhibit process start	—
